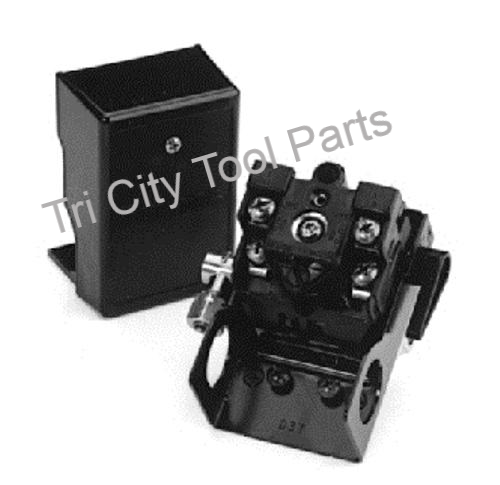

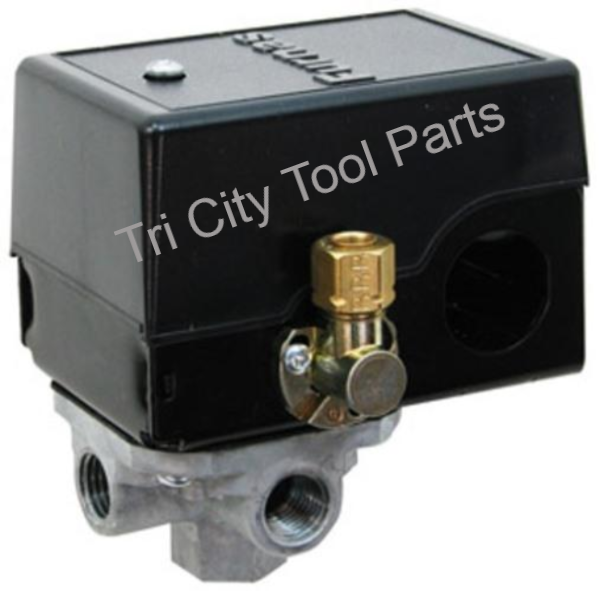

Z-D PS3535 Porter Cable Air Compressor Pressure Switch

OEM Air Compressor Pressure Switch

• Part No. ZD-PS3535

• Replaces Part #'s: Z-AC-0746, Z-AC-0747 ,  Z-AC-0809 , Z-D21892 , Z-D28777
• Furnas Electric / Hubble 4 Port Pressure Switch 125/95 PSI
• 4 Port Manifold Provides a means for easy mounting of relief valves & gauges
• 1/4”  Female NPT standard manifold ports
• Cuts in at 95psi and out at 125psi
• 24 AMP 120V or 240V Applications.
• Lever on/off switch.

• Equipped with unloader valve that can be Rotated into 8 Positions, Which Prevents the Compressor from Starting Under Loa

• Silver Cad-Oxide Brazed contacts provided superior performance and extend the life of the switch

• If you are unsure this will fit your application, please send us your model and type number and we will be happy to help.
